Unlocking Ultra-Low Latency in FinTech: The Strategic Role of PCIe/CXL Protocol Analysis

In the high-stakes world of financial technology, latency is more than a metric—it’s a competitive edge. As trading platforms evolve to leverage cutting-edge interconnects like PCIe 6.0 and CXL 3.x, the ability to observe and optimize data movement at the hardware level becomes essential. Whether you're building custom FPGA/ASIC-based cards or deploying off-the-shelf solutions from vendors like AMD, Intel, Altera, Dell, HPE, or Jabil, one tool stands out as indispensable: a PCIe/CXL protocol analyser.

The Latency Imperative in FinTech

Modern trading systems operate in environments where sub-microsecond latency is not a luxury but a necessity. Every nanosecond shaved off the tick-to-trade path can translate into significant financial gains. As infrastructure complexity increases—with SmartNICs, FPGAs, and zero-copy memory architectures—visibility into the hardware/software stack becomes critical.

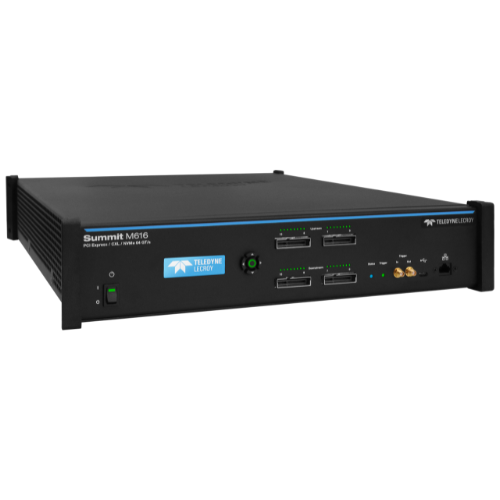

This is where the Teledyne LeCroy Summit M616 Protocol Analyzer delivers unmatched value. Purpose-built for PCIe and CXL traffic analysis, the Summit M616 offers nanosecond-level resolution, deep buffer memory, and advanced triggering capabilities that empower engineers to diagnose, optimize, and validate system performance with precision.

Why the Teledyne LeCroy Summit M616 is FinTech-Ready

The Summit M616 is engineered to meet the demands of high-performance financial systems. It supports the latest PCIe 6.0 and CXL 3.x standards, ensuring compatibility with next-gen architectures. Its high capture bandwidth and deep memory buffers allow for sustained traffic analysis under real-world conditions. Precision timestamping enables end-to-end latency tracing, while advanced filtering and triggering isolate critical events for targeted debugging.

These capabilities allow developers and performance engineers to:

• Trace DMA behavior across PCIe and CXL links to reduce CPU overhead.
• Validate zero-copy memory access in FPGA and SmartNIC designs.
• Detect malformed transactions, retry patterns, and fabric-level congestion.
• Tune BIOS and memory mappings to achieve sub-microsecond latency.


Use Cases: From Debugging to Strategic Optimization

1. Diagnosing Legacy Bottlenecks

The Summit M616 captures and timestamps PCIe and CXL transactions with nanosecond accuracy, enabling engineers to pinpoint latency sources across the system. Whether the delay originates in the host, NIC/FPGA, PCIe fabric, or memory subsystem, the analyser provides the clarity needed to act decisively. For example, if a NIC appears slow, the analyzer can determine whether the issue lies in the PCIe transaction itself or upstream in the driver or application.

2. Debugging Low-Level Protocol Issues

In ultra-low-latency environments, even minor inefficiencies—such as excessive ACK latency or retries—can degrade performance. The Summit M616 allows for inspection of Transaction Layer Packets (TLPs), detection of malformed packets, and verification of memory read/write alignment. These insights are crucial for ensuring protocol correctness and efficiency.

3. Validating Zero-Copy and RDMA DMA Behavior

Zero-copy architectures are central to minimizing CPU involvement in data movement. The Summit M616 confirms whether SmartNICs or FPGAs are issuing PCIe transactions optimally, with full payload utilization and minimal gaps. This is especially critical for pre-trade risk checks or order book logic implemented in hardware.

4. Measuring Real-World Performance

Theoretical throughput often diverges from real-world performance. The Summit M616 bridges this gap by revealing actual payload efficiency, retry rates, and congestion patterns. Engineers can use this data to align system behaviour with performance expectations and uncover hidden inefficiencies.

5. Tuning BIOS and PCIe Settings

System-level tuning—such as disabling Active State Power Management (ASPM) or adjusting MMIO prefetch settings—can have a profound impact on latency. The Summit M616 validates these changes at the hardware level, ensuring that BIOS and driver configurations are truly beneficial.

Strategic Benefits for FinTech Firms

More Than a Debugging Tool

The Teledyne LeCroy Summit M616 is not just a diagnostic instrument—it’s a strategic asset in the race for speed and reliability in FinTech. By providing protocol-level visibility into PCIe and CXL traffic, it empowers trading firms to reduce latency, validate architectural decisions, and prove ROI on next-generation hardware investments.

For any organization operating in the realm of PCIe 5.0/6.0 or CXL 2.0/3.x, the Summit M616 is no longer optional—it’s essential.
